VERSION 1.3 UPGRADE LIST
- Improvements in the side panel mechanism and case design

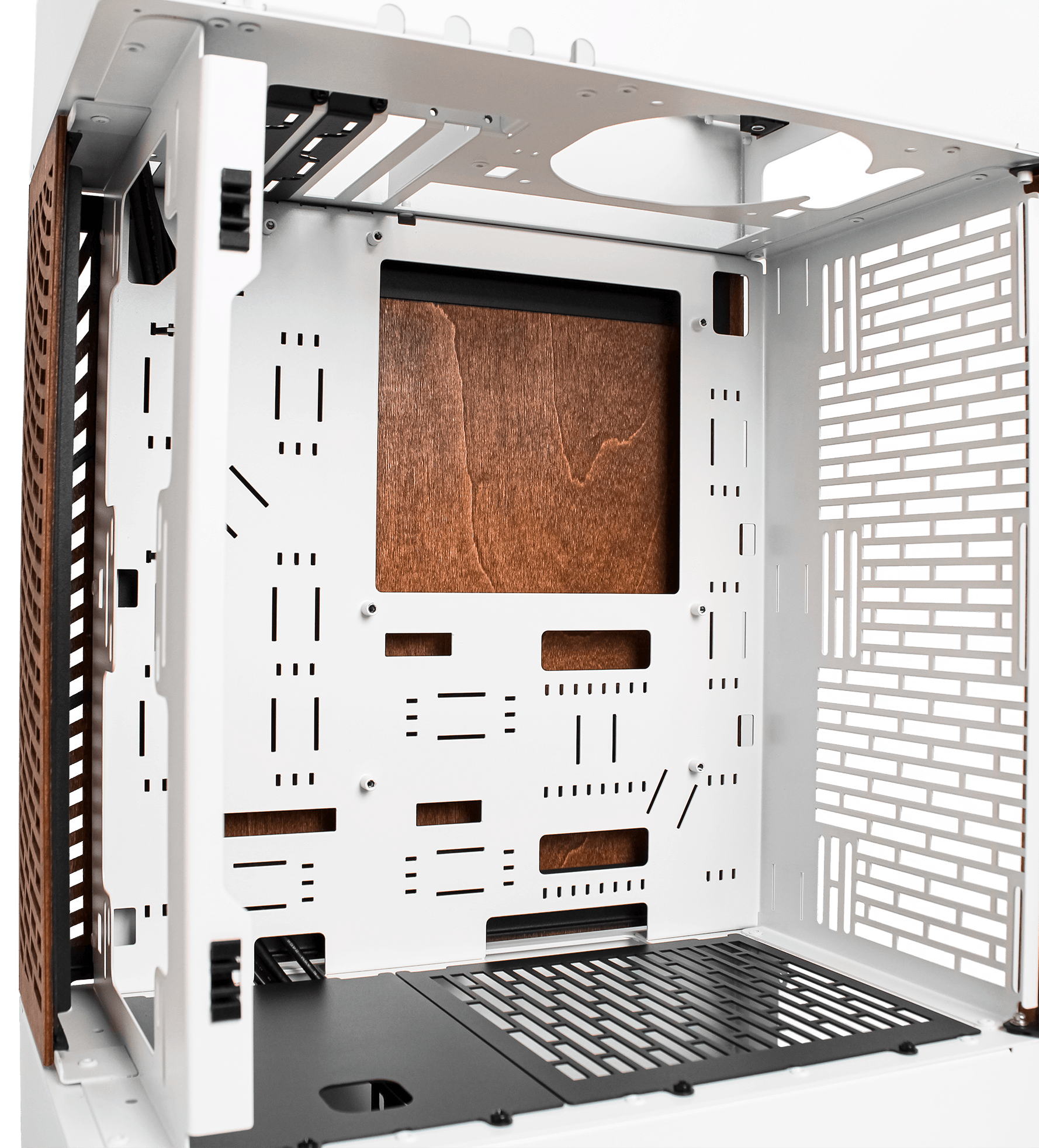

- Limited quantity of white case variants will be available later
DESIGNED FROM SCRATCH & MANUFACTURED LOCALLY
Complete control over design and manufacturing has enabled us to create a case that punches above its size in air-cooling, hardware compatibility, and ease of use.
Kanto’s innovative component layout provides best-in-class air cooling coupled with hinged wooden panel doors and spacious hardware support.
PERMANENT FIX TO GPU SAG
Vertical GPU placement and sturdy case design provide the ultimate solution to sagging GPU.
EXCELLENT COMPONENT SUPPORT
Inverted motherboard layout enables maximal GPU (up to 400 mm in length) and CPU cooler support (up to 172 mm in height). Directed GPU cooling and highly perforated front panel guarantees maximal air-cooling performance.

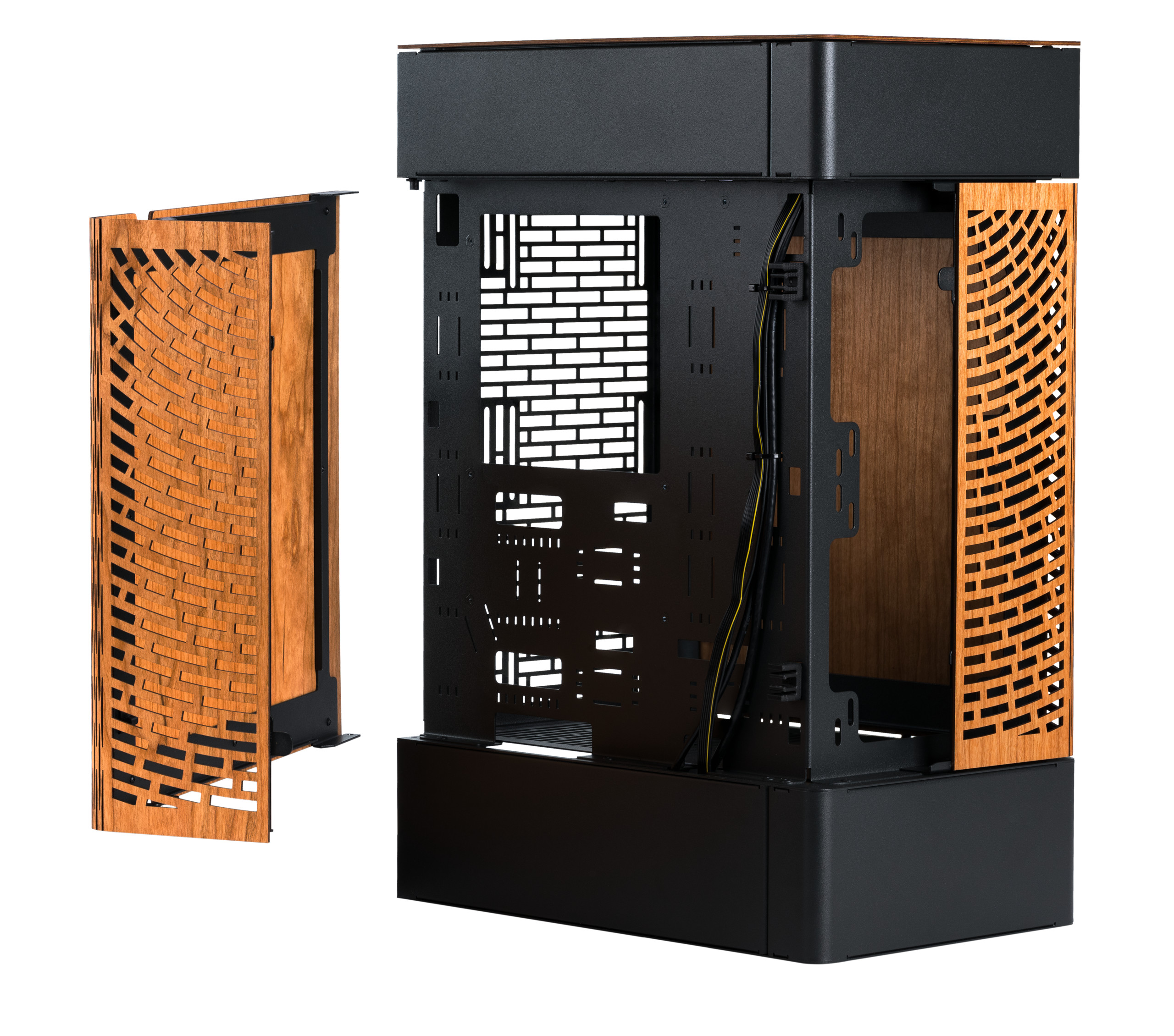

INSTANT ACCESS TO COMPONENTS AND EASY MAINTENANCE

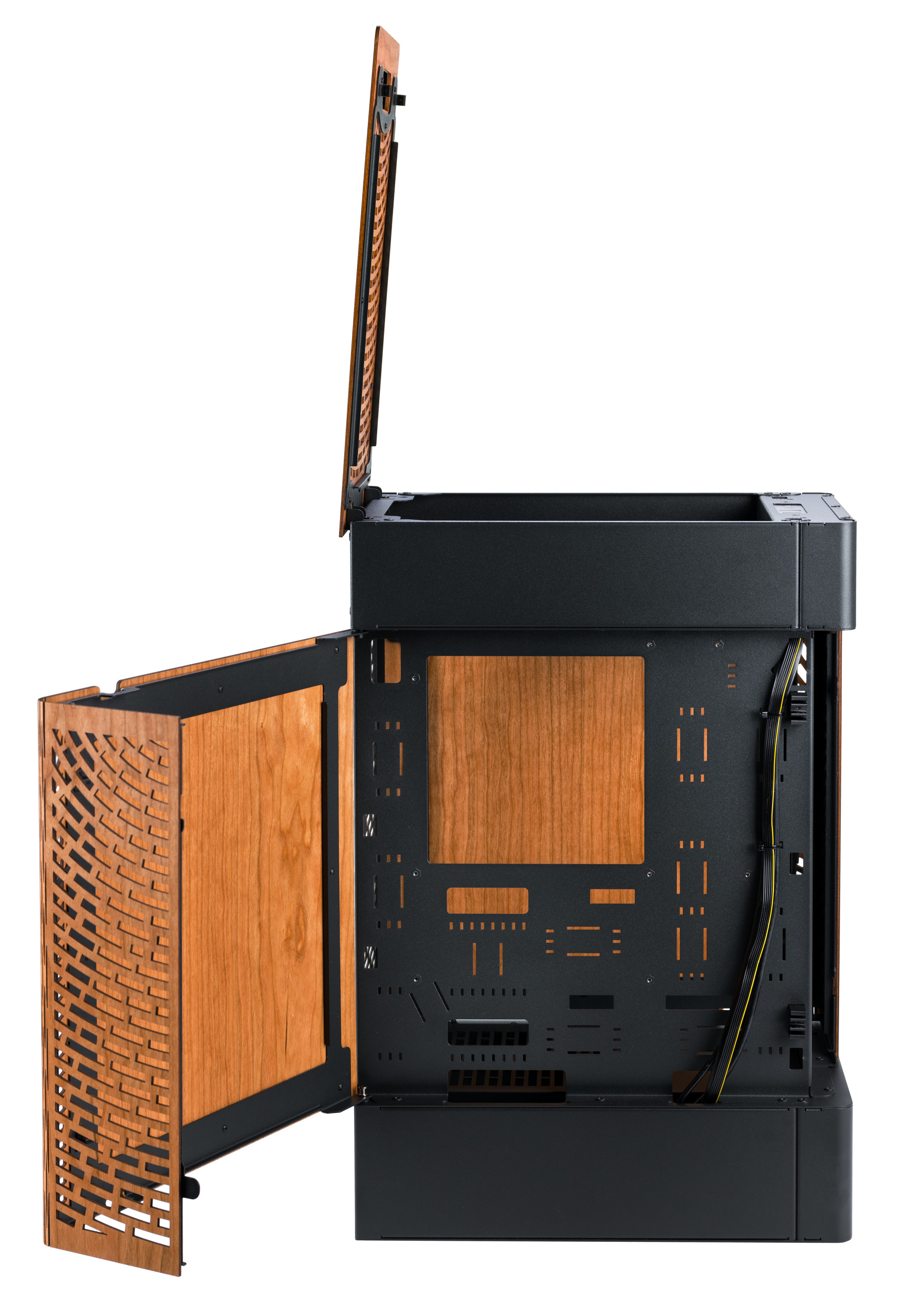

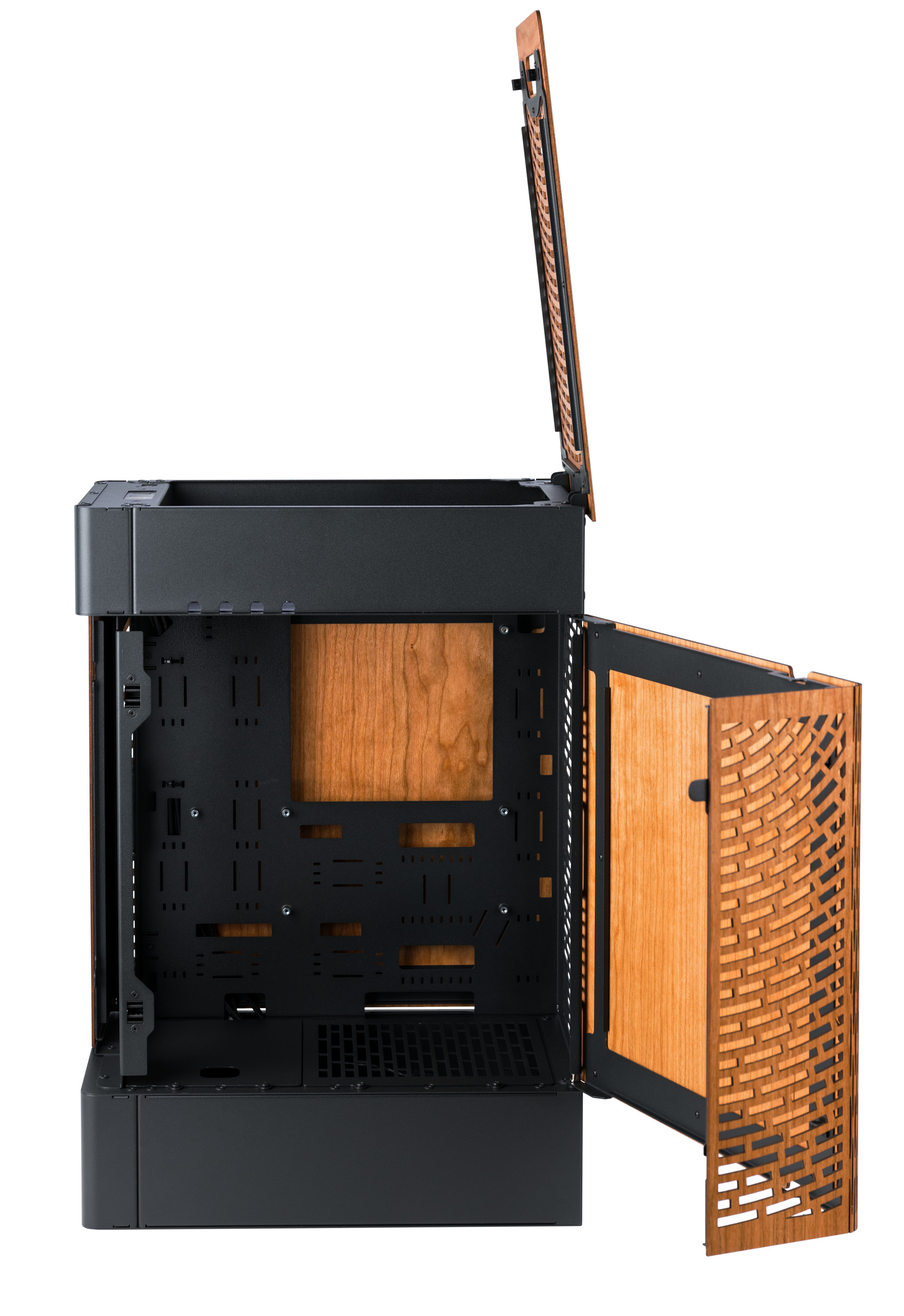

All Kanto cases come equipped with removable hinged birch plywood panels that make component installation and maintenance easy.
EASIER CABLE ROUTING
Hinged wooden side panels, metallic cable clips, and optimized cable management points help the cable routing process and component installation.

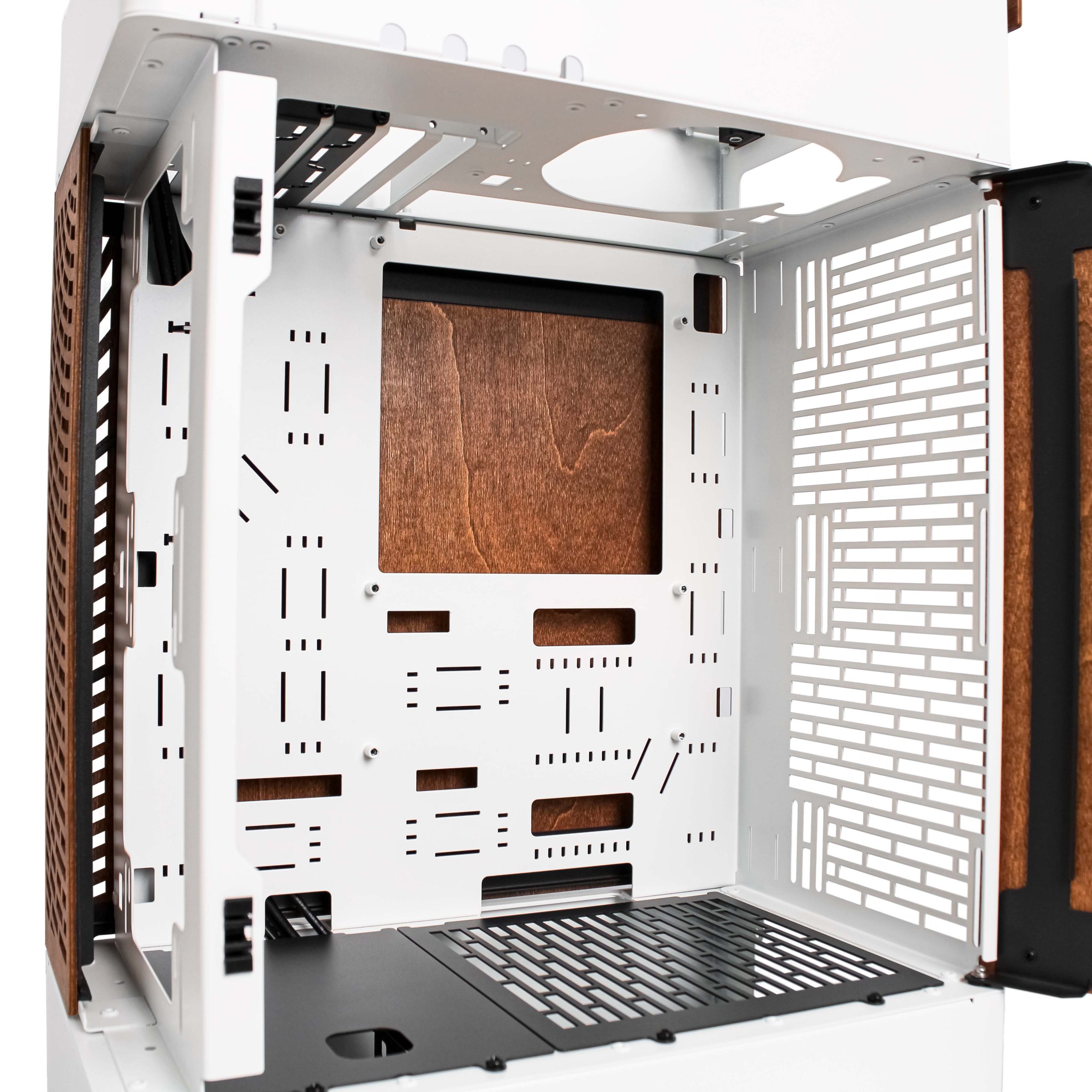

ENLARGED MOTHERBOARD TRAY OPENING MAKES ACCESSING M.2 SSD EASY

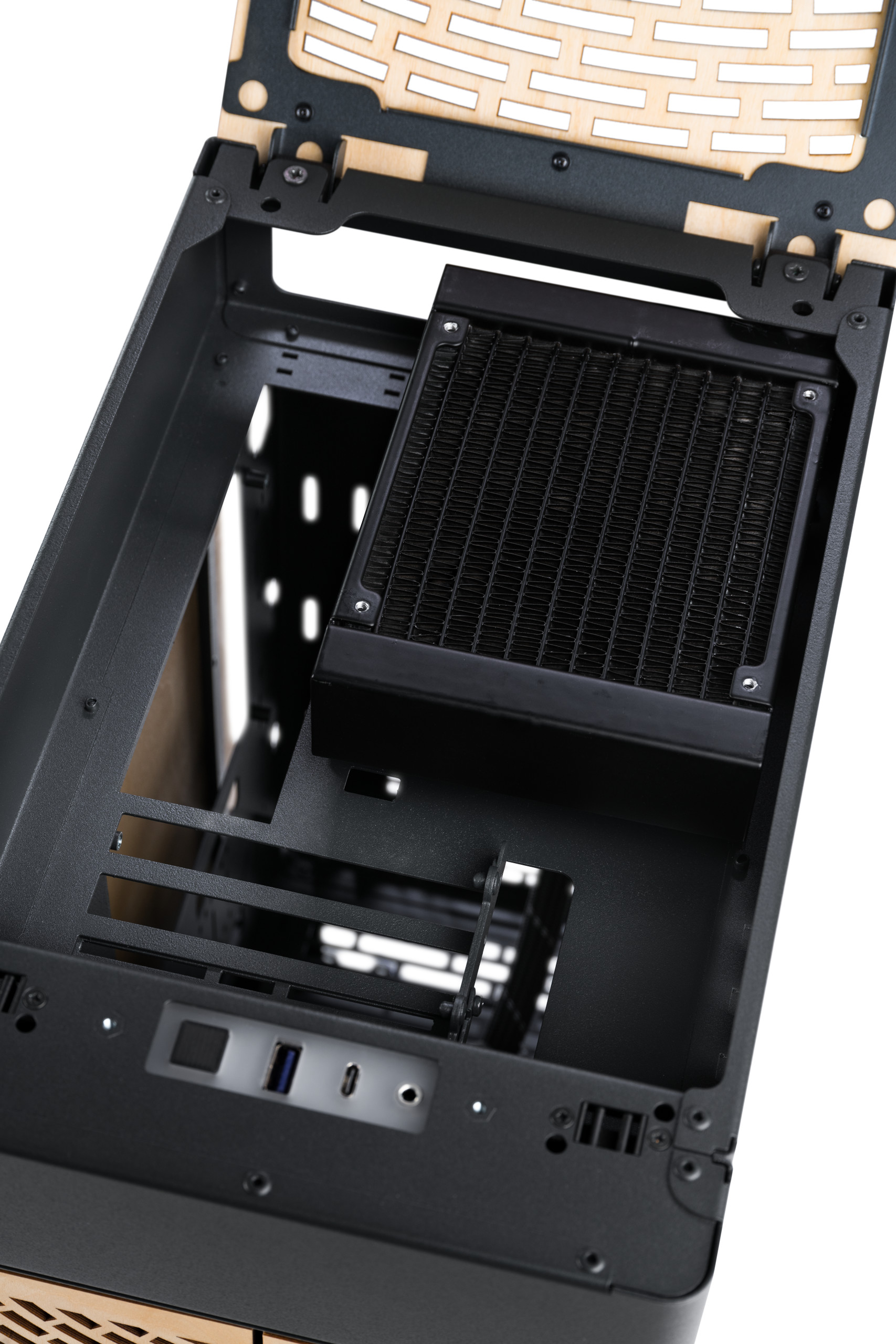

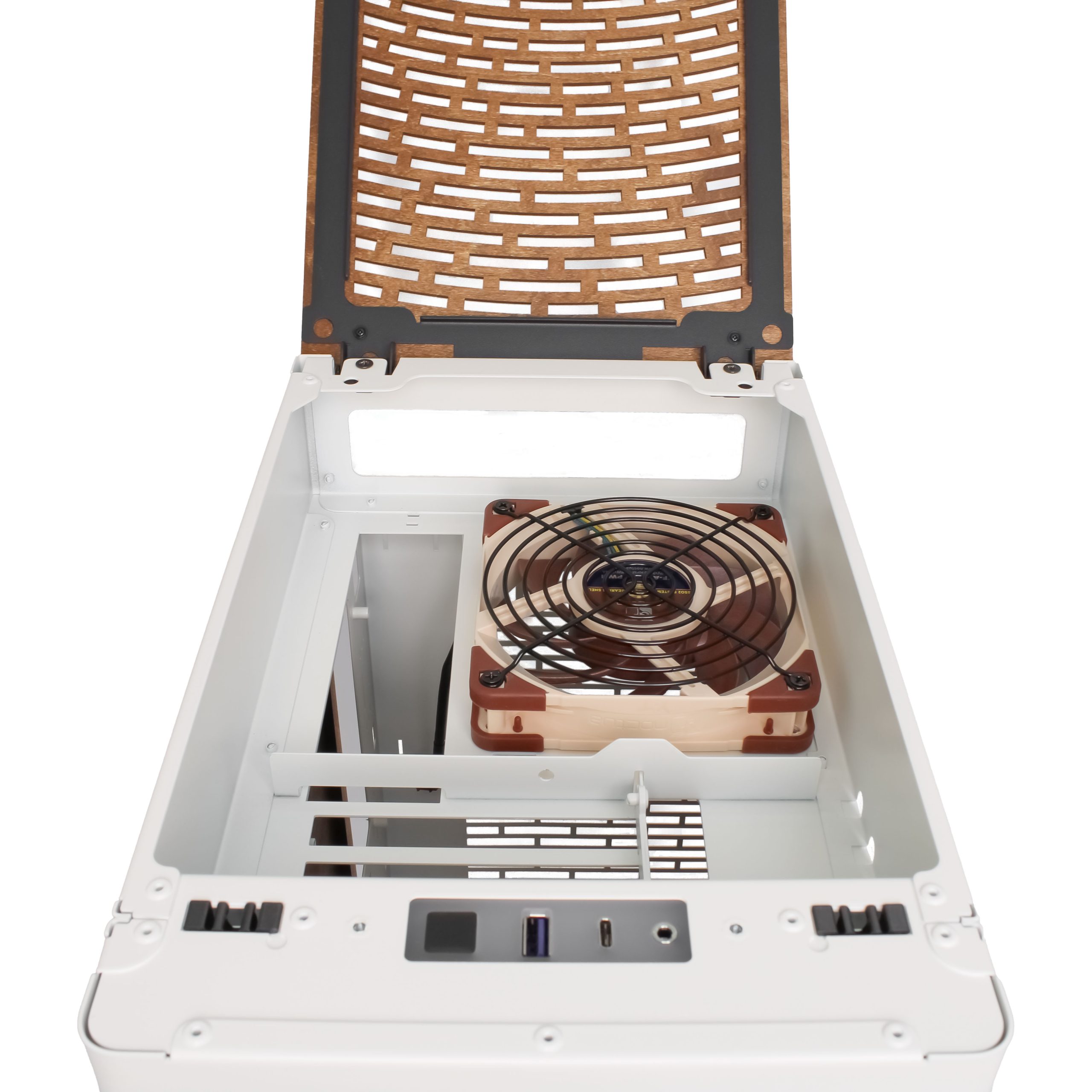

ALL YOUR I/O PORTS ARE WITHIN HAND’S REACH

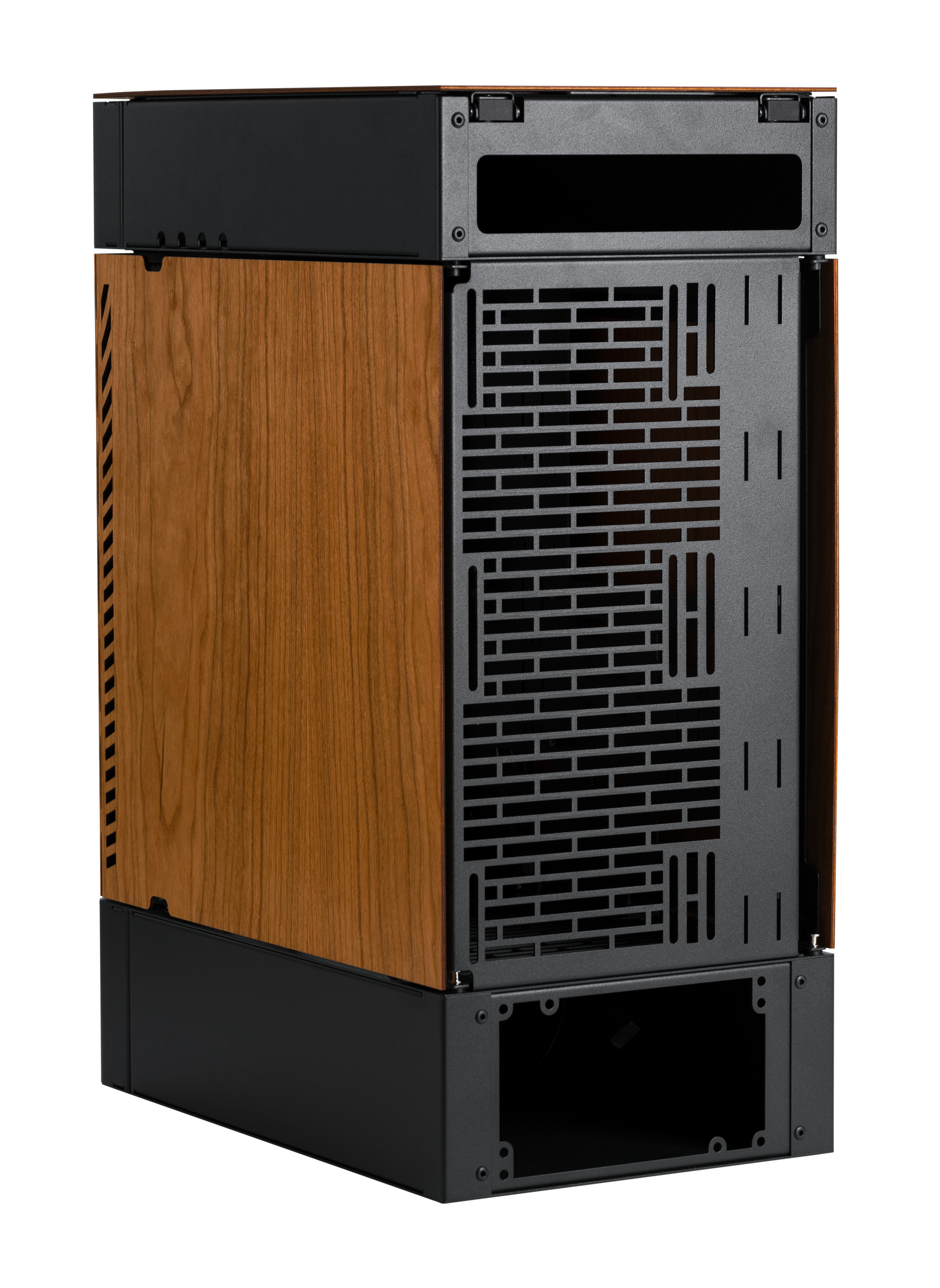

Kanto allows you to make the most out of your motherboard I/O ports. The hinged top section houses all your peripheral devices, while the rear of the case helps to route cables neatly.

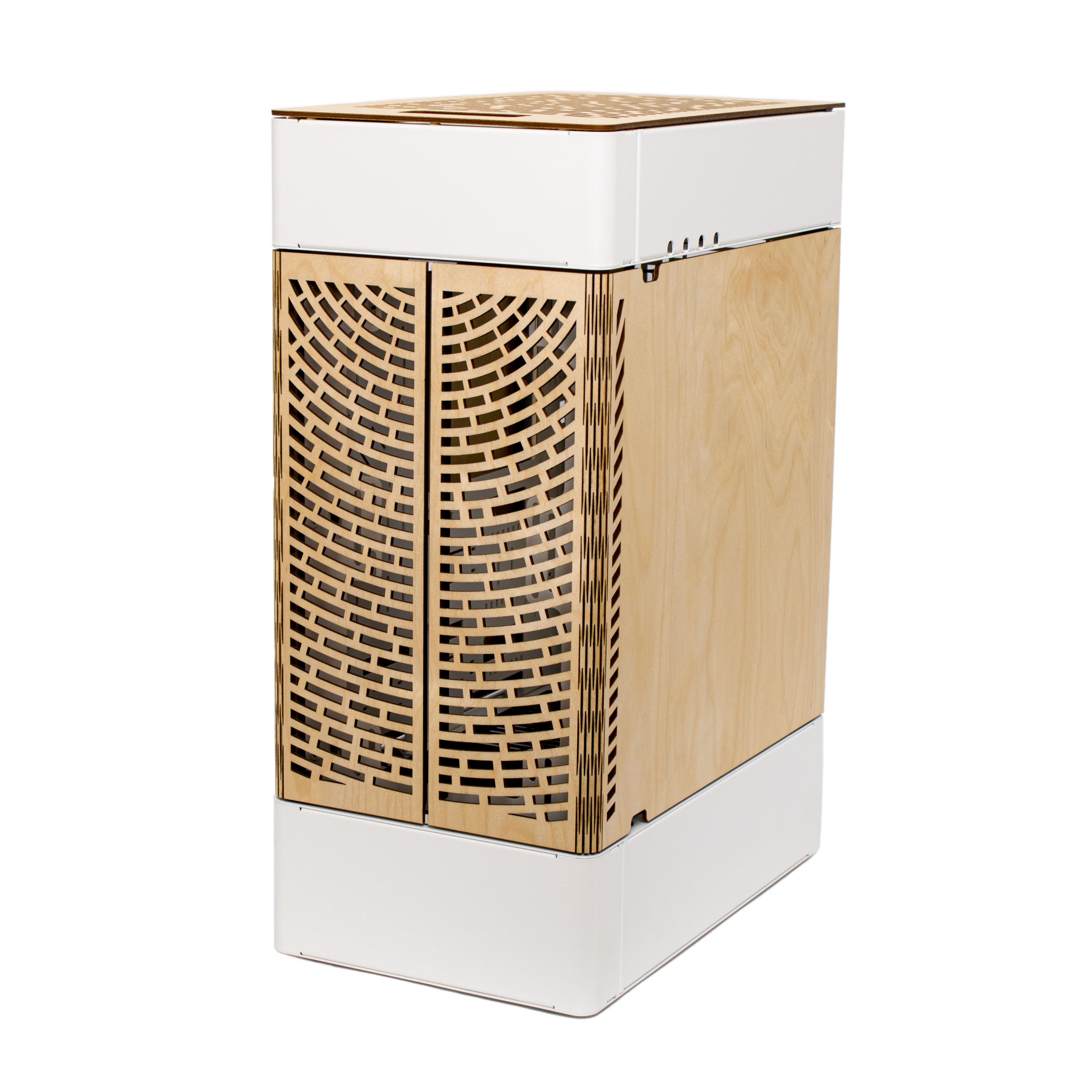

ALL OUR WOODEN PANELS ARE MADE FROM SUSTAINABLY GROWN FINNISH BIRCH

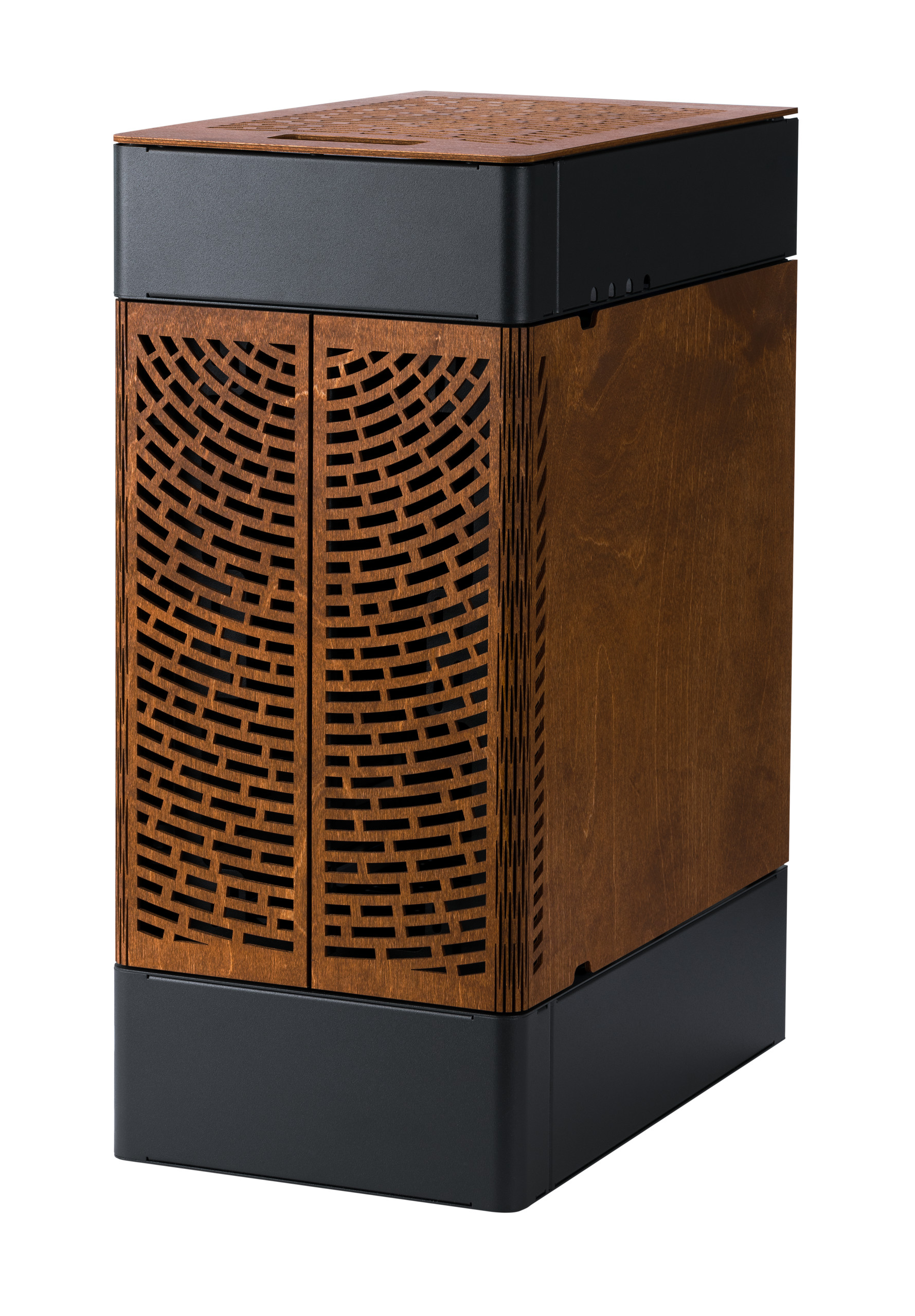

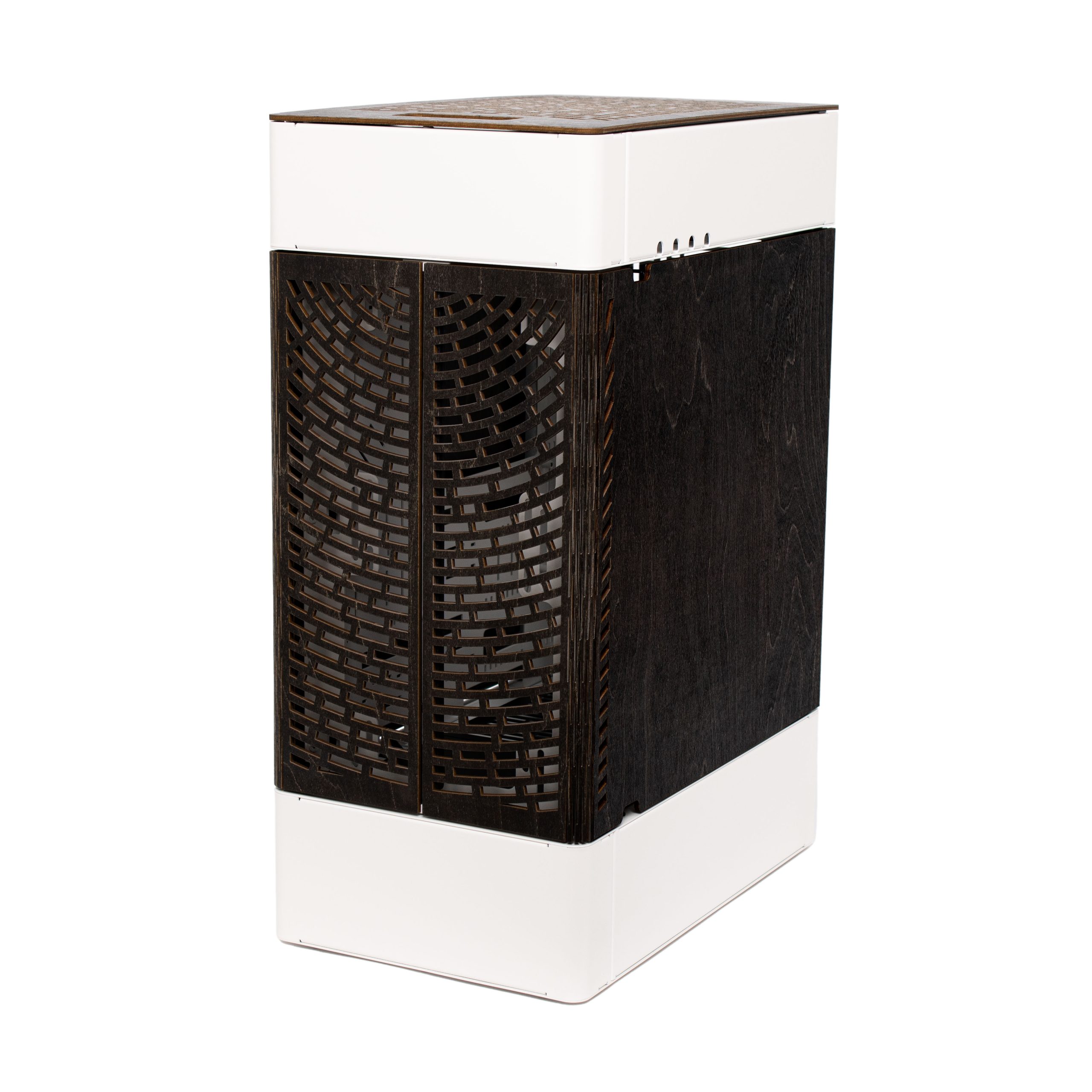

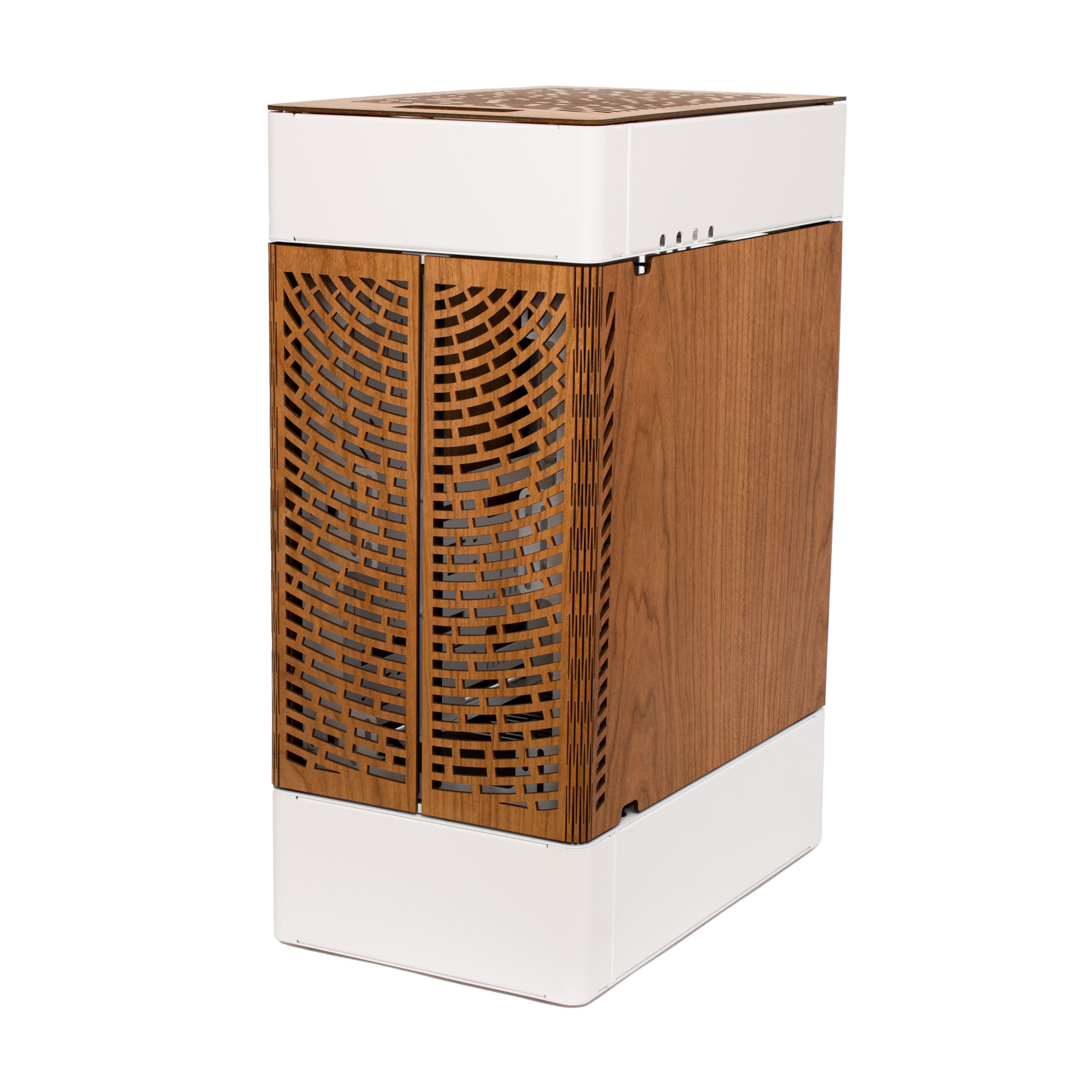

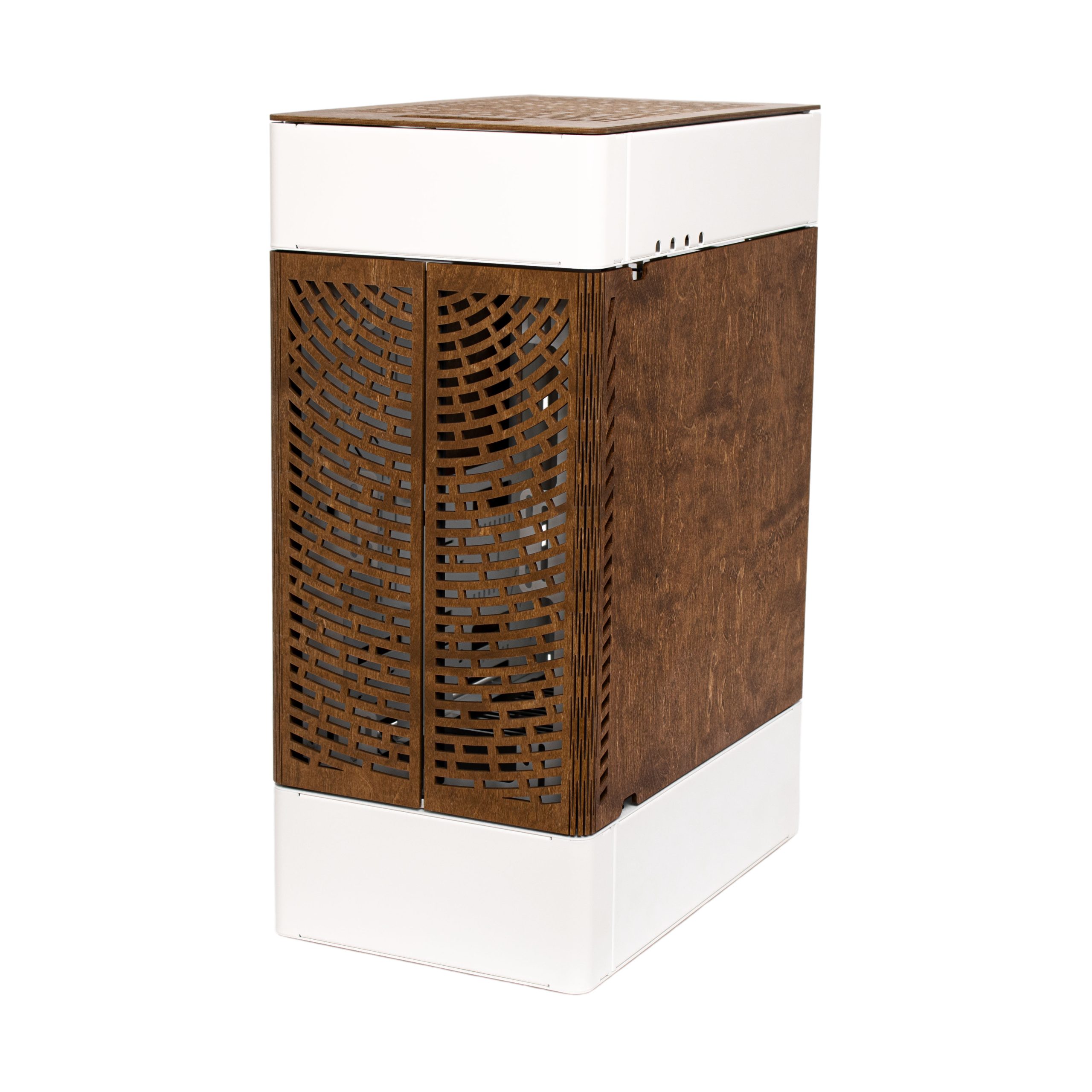

TIMELESS NATURE-INSPIRED LOOK
We took inspiration from traditional wood craftmanship and nature to create a case that would perform well and function as a piece of art on your desktop.

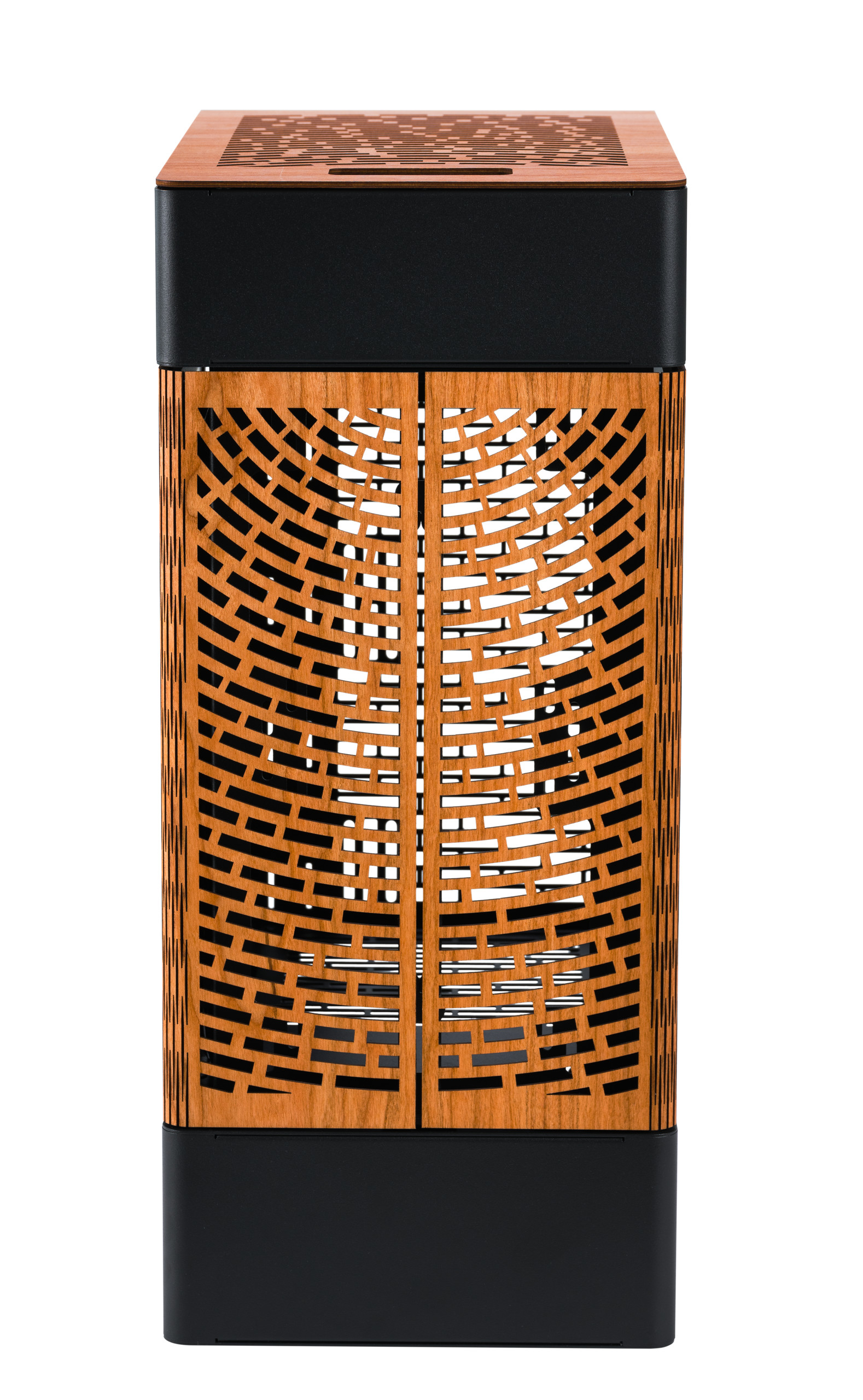

A CLEAN AND MINIMALISTIC LOOK
|Dimensions||Width x Depth x Height||217 x 335 x 492 mm|
|Motherboard support||mATX, Mini-ITX|
|Legacy drive support|
|3 x 2.5″ drives or up to 2 x 3.5″ drives (depending on 3.5″ drive height)||With HDD tray kit|
|Liquid cooling support||Front (Mini-ITX only)||1 x 120 mm / 1 x 140 mm / 1 x 280 mm|
|Rear||1 x 120 mm / 1 x 140 mm / 1 x 240 mm|
|Top||1 x 120 mm|
|Fan support||Front||2 x 120 mm / 2 x 140 mm|
|Rear||2 x 120 mm / 2 x 140 mm|
|Top||1 x 120 mm|
|Component support||GPU||Max length 400 mm (all motherboards)|
Up to 4.3 slots wide (Mini-ITX)
Up to 4.3 slots wide depending on motherboard manufacturer (mATX)
Using HDD tray kit limits GPU support to 345 – 390 mm in length depending on drive configuration
|CPU cooler||Max height 172 mm|
|Memory||Max 50 mm in height (when 240 mm liquid cooler is mounted to the rear)|
ATX, SFX, SFX-L
SFX PSUs may require cable extenders
Max recommended PSU length is 170 mm for good cable and GPU clearance; longer PSUs can block mounting tall GPUs
|Weight without package||Kilograms||6.3 kg|
|Weight with package||Kilograms||7.5 kg|
|Package dimensions||Width x Depth x Height||270 x 380 x 530 mm|
|Front I/O panel||1 x USB 3.1 Type-E 10Gbps to Type-C, 1 x USB 3.0, 1 x Combo Audio, Power switch with all-in-one pin connector|
|Included accessories||120 mm fan guard, screw kit, cable ties, hook-and-loop fasteners and metal cable management panel|
HDD tray kit and dust filter kit are sold as optional accessory
